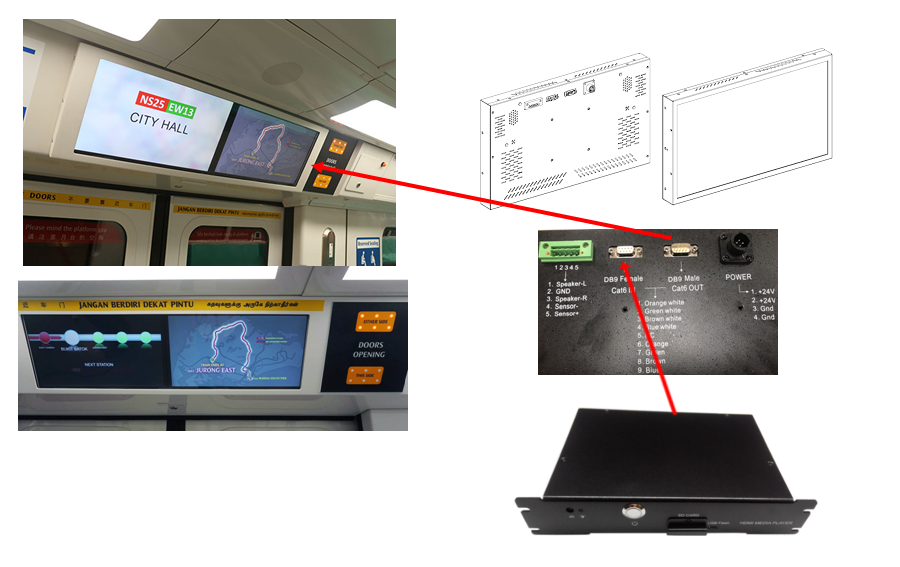

Requirement (Train Information Display System):

    Specifications

  • Display area: 409mm X 230mm

  • Input signal: HDMI with 9pin connector

  • I/O connector: HDMI In, HDMI Out, power connector with right angle cable clamp kit

  • Audio: Internal 2 X 2.5W speaker with amplifier

  • Construction: 1.2mm SECC multicoated black

  • Dimension: 434mm X 260mm X 40mm (W X L X H)

  • Net weight: Less than 5KG

  • Power: +24V DC input (24W)

  • Response time: 5ms typical

  • Display colors: 16.7M colors

    • Dual LED LCD Industrial Grade Panel

  • Display type: 18.5” TFT LED LCD Industrial Grade Panel

  • Pixel patch: 0.3 (H) X 0.3 (V)

  • Resolution: 1366 X 768

  • Max. color: 16.7M

  • Luminance: 800 cd/m2 (with auto brightness tuning feature)

  • View angle: 170 degree (H), 160 degree (V)

  • Contrast ratio: 1000 : 1

    • Others

  • Built-in HDMI to CAT5/6 repeater function

  • Built-in two 2W speaker amplifiers

  • Certification: EN50155 compliant


    • Product in Use:

  • 1.8" High Brightness Monitor: OPD-185WHB

  • HDMI Media Player: 1M1B
